Hydraulic Double Deck Car Parking Lift for 2 Cars from Basement to
Ground Level:
Details of this Double Deck Car Parking Lift:
| Model | Loading Capacity | Lifting Height | Platform Size | Pit Depth | Power |
| SJG5-2.8 | Below platform:2500kgs Upper platform:2500kgs | 2.8m | Below platform: 5.5m x 2.6m Upper platform: 5.5m x 2.6m | 700mm | 380v / 3ph/ 5.5kw |
Technical parameters of double deck car parking lift:
1. Double Deck Car Parking Lift can be used to lift cars with different levels, suitable for car
moving between stairs, from basement to first floor, or to second
floor.
2 The limit switch system helps the lift to stop at accurate
position.
3. All the Double Deck Car Parking Lift are passed 1.2 times loading test before leaving factory.
4. The hydraulic cylinders and hose are armed with explosion-proof
lock valve to avoid a sudden drop once hydraulic pipe breaks, the
work platform will be down slowly to ensure safety.
5. Emergency button is available on each control box, when
emergency occurs, the immediate STOP can be realized.
6. Overload protection facility is equipped on, the Double Deck Car Parking Lift
will not work when goods is overloaded.
7. Maintenance window is made in the middle of work platform, it is
for your convenience to maintain the Double Deck Car Parking Lift in future.
8. There are 2 sets control system are installed on the lift, 1
control box below, and 1 control panel on handrail that can be
operated on work platform.
9. guarantee: 12 months, we supply spare parts free and supply
technical supporting all the time.
10. delivery time: 25 days.
11. Customers from Netherlands, Greece, Uruguay, Brazil, Estonia,
Croatia, and Switzerland have already established agreeable
business relationship with us, and highly appreciated our
professional service.
Custom-made products are done according to detailed request, please
tell us load capacity, lift height, and platform size you need, our
engineer will design a suitable
Double Deck Car Parking Lift for you soon.
Configuration:
1) Platform Material: 200mm * 150mm rectangular tube +6mm checkered
iron
2) Scissor material: 200mm * 150mm*15mm high strength Manganese
Steel.
3) Hydraulic system: 380V/5.5Kw
4) High Precision Hydraulic Cylinder: 110*4sets
5) Piston Rod: 70*4 hard chromium plating surface.
6) High-pressure oil pump
7) Hydraulic oil: summer 46#, winter 32#
8) Controller: 1 control box below, 1 control panel above platform

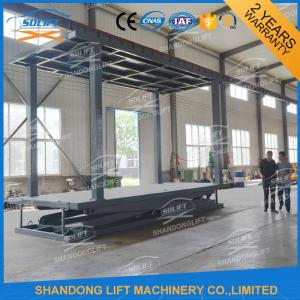

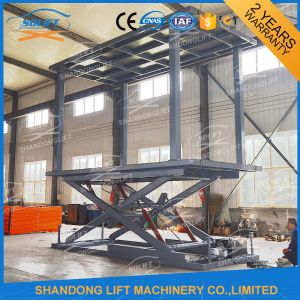

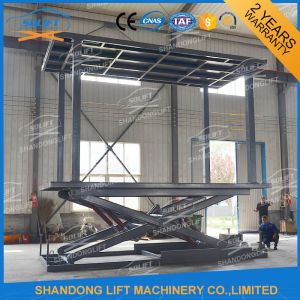

The products showing:
The Customer from France, Belgium, and Australia visiting for
placing order in Mry, 2016:
